Description

Maxo CTS Gearbox

35mm & 45mm Backsets available

Please note that new Maco gearboxes cannot be retrofitted to old locks.

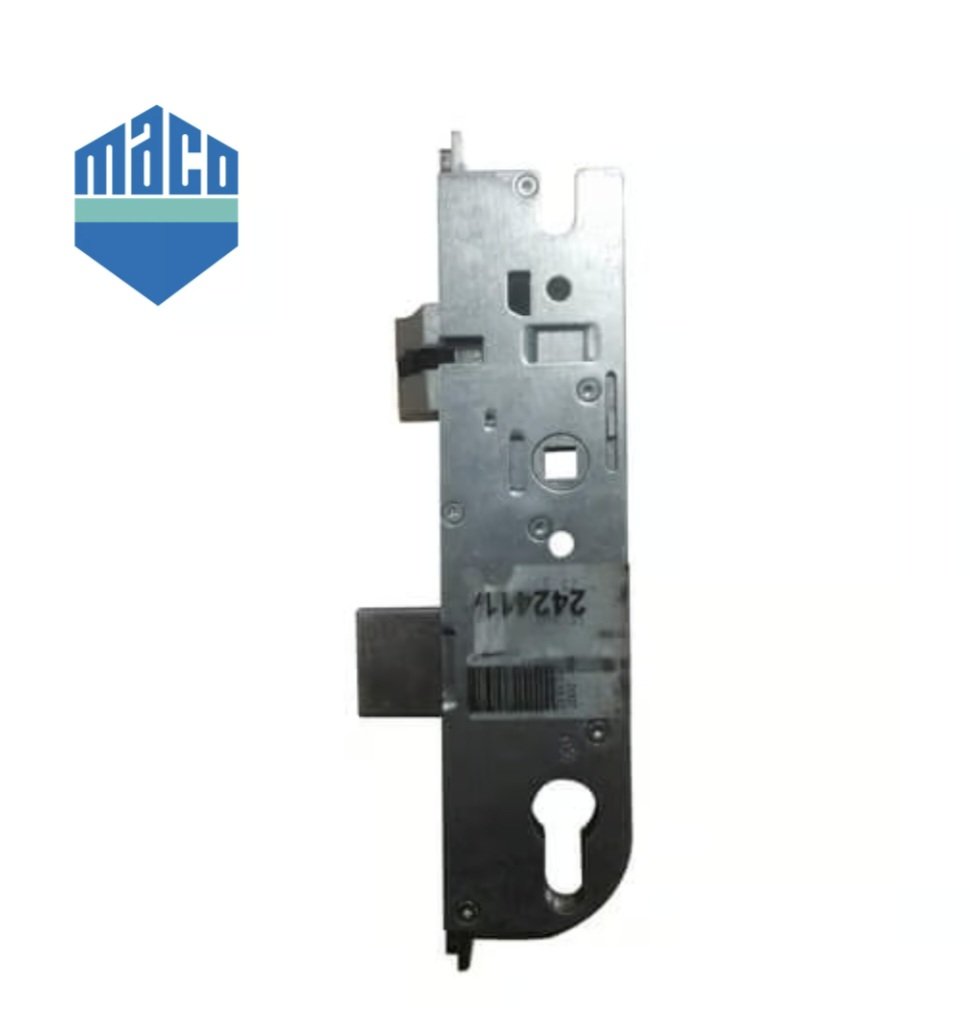

Maco Protect C-TS locks have a distinctive rounded shape to both the main gearbox and the hook boxes. The main gearbox corner, next to the euro cut out is particularly rounded.

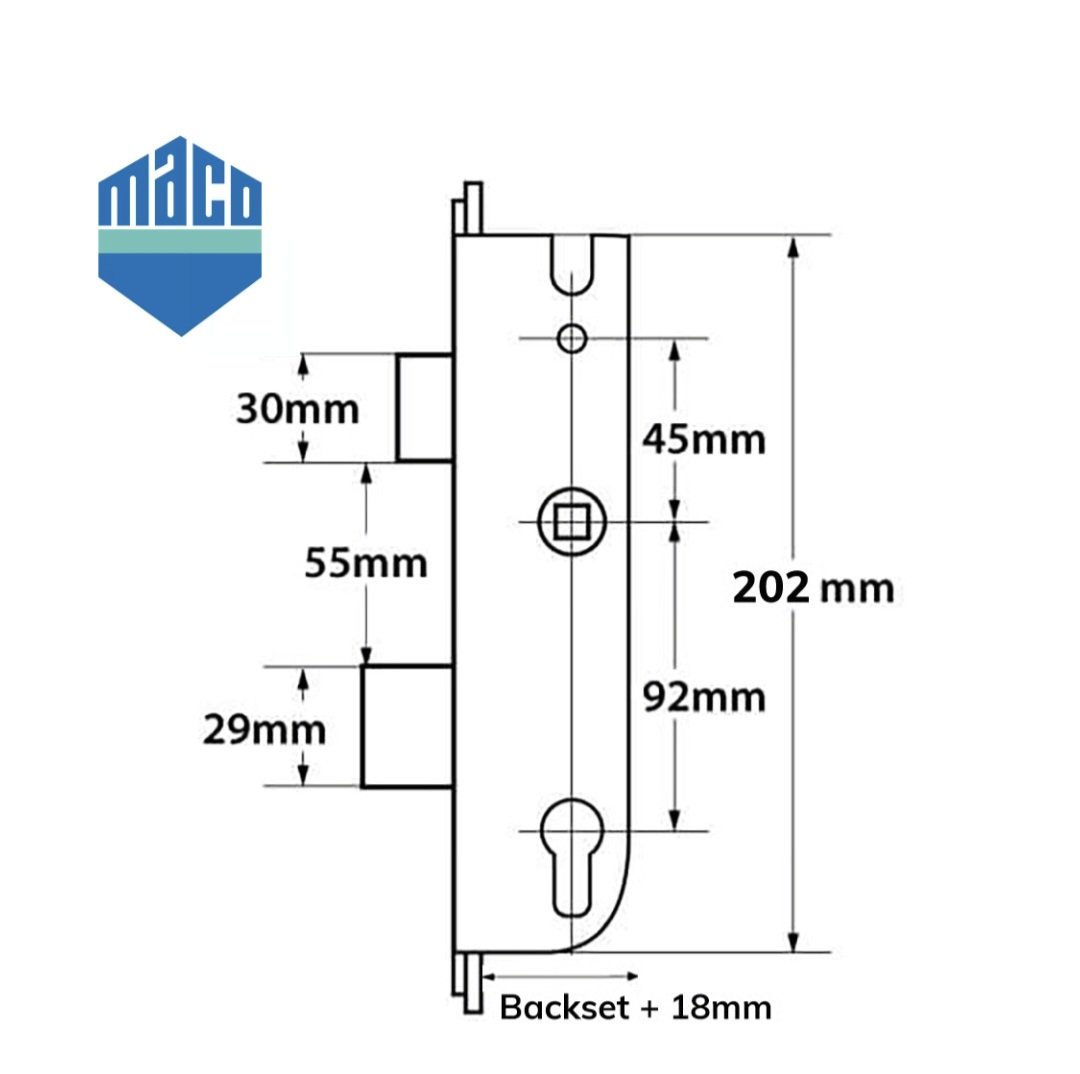

Measuring 202mm high, they are one of the smaller gearboxes on the market. They also feature a distinctive “soft” latch, which appears to be split in half. It’s worth noting that Maco offers different variants of these latches, so this latch is not conclusive when identifying this lock.

Both the latch and deadbolt on these locks measure 30mm high, with 55mm between them. They are held onto the faceplate with 3 screws. The top screw to the centre measures 102mm and the centre screw to the bottom screw measures 110mm.

When measuring the backset, allow 2-3mm for the faceplate, so a 35mm backset gearbox will measure 32mm when not fixed to the strip.
